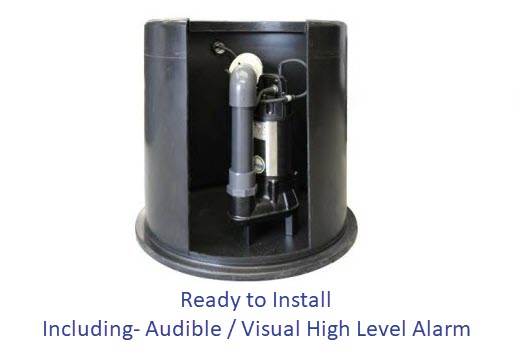

The PTL Minimatic Sewage Pump Station is suitable for domestic sewage pumping installations where gravity flow is not available.
It can also be used for a variety of drainage applications. It is ideal for extensions, garden rooms and similar small applications and is designed for fast, easy installation.
This unit is particularly suitable when water or sewage is collected at a lower level than the main sewer or a septic tank system and requires pumping uphill into these. Everything required for the pump station is included, so the installer only needs to supply the pipework to and from the station, plus any fittings.
The PTL Minimatic Sewage Pump Station features a high spec. submersible pump with 50mm solid handling for optimum efficiency and peace of mind.
“We have worked with Pump Technology Ltd for over 10 years and continue to specify their products on developments where reliable, submersible packaged pumping stations are required. Their design team provides professional advice and are always available to discuss specific requirements.”
PUMP
- Cast iron/stainless steel construction
- 50mm (2″) solids handling capacity
- Coolant filled motor
- Mechanical seal
- 10 Meter cable
- Max 6 Meter lift
- Max flow 5 L/sec
- Float switch as standard
TANK
- Polyethylene tank. 160L capacity
- Screw down lid (Pedestrian rated)
- 1 x 110mm/160mm inlet seal
- to allow inlet to be drilled on site
- 40mm cable duct
- 2″ internal pipe work – 2″ non-return valve
- 2″ quick release coupling – 2″ cable duct
- Special audible/visual high level control box
Free First Service for sites in a
25 miles radius of Pump Technology Ltd.
Bit more explanation here of service contracts etc
“Lorem ipsum dolor sit amet, consectetur adipiscing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur. Excepteur sint occaecat cupidatat non proident, sunt in culpa qui officia deserunt mollit anim id est laborum.”
GET ALL THE INFORMATION YOU NEED DOWNLOAD OUR DATASHEET
