30
IF YOU HAVE ANY INSTALLATION QUERIES PLEASE TELEPHONE OUR TECHNICAL DEPT. BEFORE INSTALLATION.
Due to a policy of continuous product improvement we reserve the right to alter specifications without notice

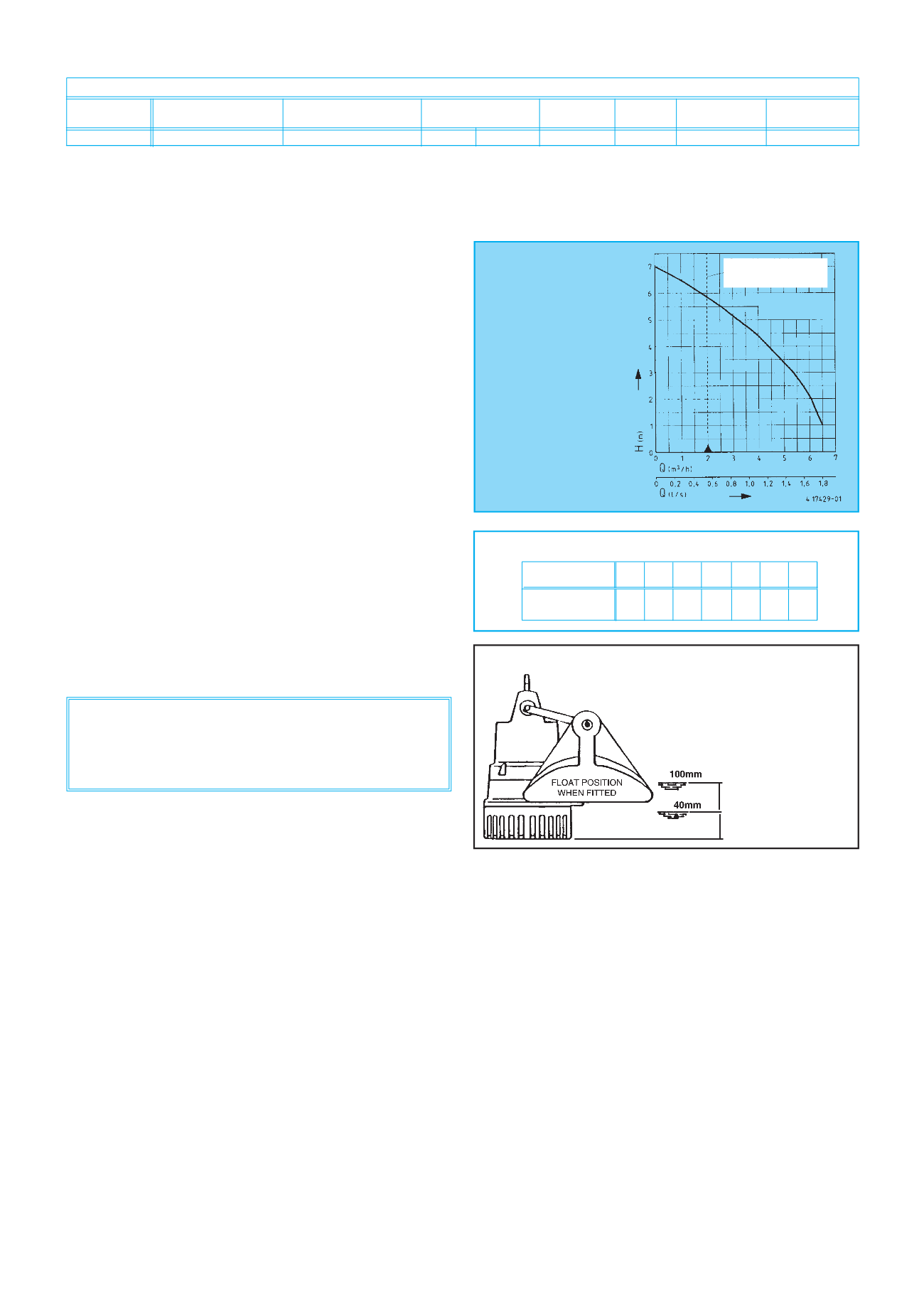

Electrical Data
Pump
Current Type
Voltage
Motor Power
R.P.M.
F.L.C.
Motor
Plug
Volts
P1 P2
Min -1
Amp
Protection
PTL 30
1 Phase
230
0.32 0.20
2720
1.4
Incorporated
Safety
DRAINMINOR
DOMESTIC
, MINI, WASTE WATER PUMPING SYSTEM
Low Level Float
Must be fitted for Shower,
Washing Machine,
Dishwasher
DRAINMINOR:
This consists of a durable tank manufactured
from polyester/glass fibre laminate.
QUALITY:
The tank is pigmented throughout with an
externally smooth isophthalic polyester gel coat and resin
enriched lining.
OUTLETS:
The tank has a 1¼" BSP discharge outlet.
PUMP Type PTL 30
Vertical, single-stage, submersible, with foot strainer (10x40
mm). Volute casing with 1¼" (male) radial pressure branch.
Bearings
Common shaft for pump and motor, mounted in ball bearings
and grease lubricated for life.
Seal
Shaft sealing by means of shaft sealing rings and
intermediate oil chamber, safe to run dry for short periods.
Motor
Submersible motor, type of enclosure P 68, insulation class
B, starting via plug or automatic circuit. Completely water
tight cable entry.
Materials
Motor housing in high-grade steel, volute casing, impeller
and control head in plastic (GRP), shaft in stainless steel,
rubber insulated flexible cable.
ALL INVERTS TO BE MADE TO SIDE OF TANK USING
TANK CONNECTORS.
1¼" MINIMUM VENT TO AIR REQUIRED.
PTL 30
1.70 1.57 1.37 1.15 0.82 0.45 ltr/sec
PERFORMANCE PTL 30
Delivery Head/m 1 2 3 4 5 6
The
DRAINMINOR
comes complete with a two year
warranty. In the unlikely event of technical difficulties,
please ring:
Pump Technology Limited on 01189 821555
IMPORTANT: This unit is not designed to
handle sewage. Please enquire about our
packaged sewage pumping systems.
INSTALLATION
DRAINMINOR
Installers please note.
1.
Remove lid from tank, check pump is correctly positioned and connecting pipework has not been damaged In transit.
2.
Check that the pump is correctly positioned in the tank and that the union is tightly connected so that the pump does not
move on its mountings impeding the float action.
3.
All inverts should be brought into the tank by drilling a hole and using an appropriate tank connector.
4.
All inverts should be brought into the tank (using tank connectors) at the highest possible level from the floor - i.e. no
lower than 200 mm from base of unit. (with low level float 110 mm)
5.
Preferably no connections through the lid as this inhibits easy removal of the lid for cleaning tank. (Note: tank
MUST
be positioned in such a way that lid can be removed easily to allow access for tank interior and pump cleaning.)
6.
Ensure that the inflow of water is not directed onto the float mechanism.
7.
A compression fitting can be installed between the non-return valve and the discharge pipework to enable the removal of
the
DRAINMINOR
tank if required.
8.
Slow radius bends MUST be used for every change of direction of the 1¼" discharge pipework.
9.
If the discharge pipework connects to a soil stack, manhole etc.
below the discharge outlet of the tank
, an anti-syphon
unit MUST be fitted to the highest point of the discharge pipework.
VENTING TO AIR:
THE TANK MUST BE VENTED TO AIR (1¼" MIN.). TO DISCUSS YOUR PARTICULAR
APPLICATION WITH REGARD TO VENTILATION PLEASE CONTACT OUR TECHNICAL SALES DEPARTMENT.
MAINTENANCE:
The DRAINMINOR should have the lid REGULARLY removed for CLEANING of the Tank and Pump
Pump
performance
is subject to
ISO 2548
tolerances.
Capacity ± 8%
Head ± 6%
KW absorbed ± 8%
Operative Limit
Discharge pipe DN 32
