packaged pump station in the ground

Pump Technology Ltd.’s expertise makes packaged pump station selection simple!

Francis Construction Ltd. whose slogan is “Quality Through Experience”, are known for their work in all areas of construction – residential, education, healthcare, leisure and commercial.

They were recently asked by the owners of an industrial site in Berkshire to convert the usage of a single warehouse into two separate units, each incorporating offices, kitchen facilities and toilets.

Mark Barrett, Francis Construction Chairman, says “Our team studied the drainage options and decided that the only practical and economic solution would be to install a packaged pump station”.

The site plans and levels were given to Pump Technology Ltd, who specialize in providing wastewater and sewage pumping solutions. Their in-house consultant quickly sized and specified a below-ground pumping station which perfectly matched the company’s needs and budget.

Mark, says “It was also particularly helpful that Pump Technology Ltd. was able to discuss the equipment selection with Building Control, ensuring we had approval for the connection of services to the public sewer”.

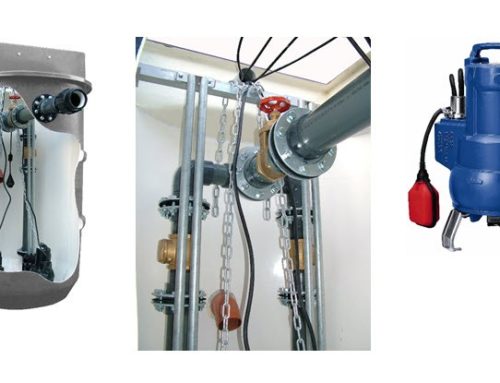

Due to the location of kitchens and toilets the chosen PumpMatic” 75/1000 packaged pumping station was installed within the footprint of the warehouse. The discharge run is approximately 70 meters, with a small rise of just over 1 meter. The specification included two robust Sulzer Piranha submersible cutter sewage pumps, with a control panel for automatic duty standby operation and a high-level alarm. In addition, a double-sealed pedestrian cover was supplied to cater for the internal location of the tank.

PumpMatic pump stations are manufactured within the Pump Technology Group, enabling them to fully control the high build quality and ensure on-time delivery.

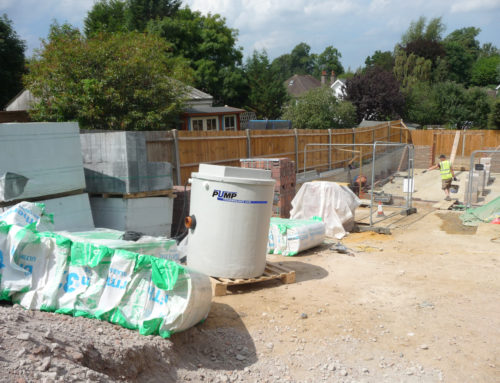

Mark says “We completed a simple clock diagram showing the relative position and elevations of inlets and that of the pumping chamber outlet prior to the manufacture of the tank. The equipment arrived on-site, on time and with all the ports aligned accurately to our piping plan”

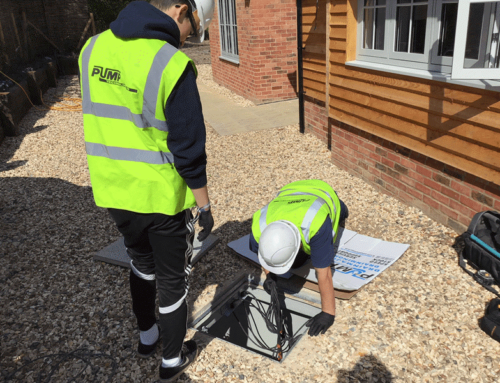

After installation, the packaged pump station was commissioned by Pump Technology Ltd and will be supported in the future by an annual maintenance and repair contract.
