DrainMinor Range
There are four options available in our DrainMinor Range
-
- DrainMinor 30 (waste water pump)
- DrainMinor 30SL (waste water pump)
- DrainMinor C (combi oven pump)
- DrainMinor S (shower waste pump)

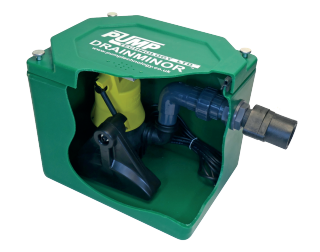

DrainMinor 30 (240V) Part No. 111
(Wastewater Pumping System.)
DrainMinor 30 (240V) features a heavy-duty tank and submersible pump for automatically pumping wastewater. It is a self-contained waste pump for sink water perfect for use in a kitchen. It is a fully automatic, wastewater pumping system, suitable for domestic and commercial installations where gravity drainage is not possible.
It is extremely compact – 380mm L x 290mm W x 322mm H – and will pump wastewater from locations such as sinks, wash basins but also domestic dishwashers and washing machines.
Accessories

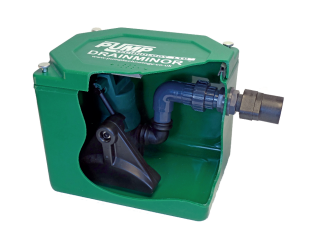

DRAINMINOR 30 SL (240V) Part No. 113
(Wastewater Pumping System)
DrainMinor 30 SL features a heavy-duty tank and submersible pump for automatically pumping wastewater. This small pump differs from the DrainMajor 30 as it features a shaft mechanical seal rather than lip seals. Therefore it is suitable for applications like laboratories, vets, dentists, hairdressers, janitor sinks and coffee shops where excess coffee granules and milk skin is being washed down a sink.
It is the ideal solution for wastewater containing mildly corrosive chemicals (20 parts per million concentration).
Accessories
DRAINMINOR C (240V) Part No. 113 C
(Combi Oven Pump)
The DrainMinor C units have been designed to pump hot wastewater from single or multiple combination ovens. A sink or basin can also be connected. The pump will handle hot water up to 60°C, or even higher temperatures for short periods and can deal with up to 10 mm solids. (For continuously rated hot wastewater pumping up to 90°C please see DrainMajor 730HES.)

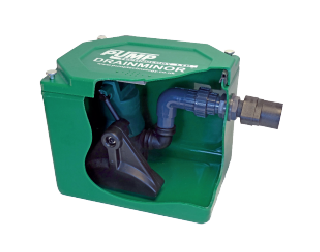

DRAINMINOR S (240V) Part No. 113 S
(Shower Waste Pump)
These units have been designed to pump hot wastewater from one or more shower drain trays. A sink or basin can also be connected. The pump will handle hot water up to 60°C, or even higher temperatures for short periods and can deal with shampoos and gels etc.
Further Information
For all 4 products in the range, the rugged tank is manufactured from recyclable Polyethylene, and can be customised to suit the required installation pipe layout. The material also lends itself to shrugging off any internal grease to make cleaning much easier.
- Easy to Install – Easy to Own
- Compact, Quiet and Powerful.
- Activated carbon filter, incorporated into the lid.
- Difficult or awkward runs – no problem.
- High water level alarm available.
- 10mm solids handling.
- Pumps 5m head or 50m horizontally.
- 32mm discharge pipe work.
Good for the Environment
DrainMinor tanks are made from Recyclable Polyethylene. Recycling polyethylene is highly cost effective and therefore successful. It is greener than incineration, far more ecofriendly than landfill disposal and easier to use when manufacturing products such as toys, recycling bins, envelopes and much more.
Frequently Asked Questions
Closed valve head is 7m, max flow rate 1.7 L/S.
An automatic submersible Jung Pumpen U3K and U3K Special, with low level float. (U3K Speical is fitted with mechanical seal for applications such as- Light chemical, arduous food waste- coffee granules, milk skin…)
110mm. This ensures the suction to the pump is always flooded and prevents the possibility of air locking.
Recyclable Polyethylene. The tank is rigid, easier to drill tank connections into, and the sides of the tank are less likely to congeal with fats and grease.
No tools are required to remove the lid. It’s held in place by 4 off stainless hand screws.
DrainMinor Case Studies
Clever Wastewater Pumps enable School Refurbishment
The old 1960’s sports hall has been divided in two and the best practical design for both staff and children meant the staff kitchen and additional shower room needed to be introduced into the centre of the space. However, this placed them too far from the existing sewer to allow any gravity drainage.
Cosmetic Sales Concessions Areas need to dispose of waste water with a pump under sink solution
In recently fitted out cosmetic concessions areas within leading chain stores, the installer, found that gravity discharge for the sinks was not an option, so a different solution was required.
