DrainMinor waste pump for sink2022-03-31T13:59:23+00:00

DrainMinor waste pump for sink water, now with built-in carbon filter

waste pump for sink

Ideal for:

Waste pump for: Sinks, Showers, Baths, Washing Machines, Dishwashers etc.

DATASHEET
Drainminor Datasheet
BROCHURE
Drainmajor Range Brochure
O&M MANUAL
Drainminor Installation Manual
CASE STUDY
Drainminor Case Study

Applications

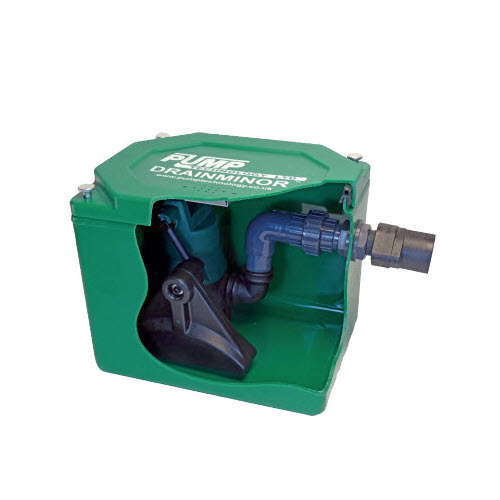

It is a self-contained waste pump for sink water perfect for use in a kitchen. It is a fully automatic, wastewater pumping system, suitable for domestic and commercial installations where gravity drainage is not possible. It is extremely compact – 380mm L x 290mm W x 322mm H – and will pump wastewater from locations such as sinks, wash basins but also domestic dishwashers and washing machines.

The rugged tank is manufactured from recyclable Polyethylene, and can be customised to suit the required installation pipe layout. The material also lends itself to shrugging off any internal grease to make cleaning much easier.

  • Easy to Install – Easy to Own
  • Compact, Quiet and Powerful.
  • Activated carbon filter, incorporated into the lid.
  • Difficult or awkward runs – no problem.
  • Corrosive chemical resistant ‘SL’ option. (Ideal for laboratory use)

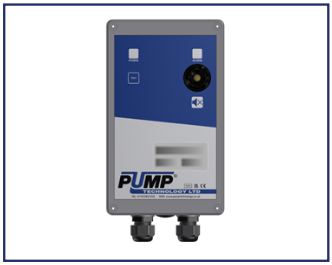

  • High water level alarm available.
  • 10mm solids handling.
  • Pumps 5m head or 50m horizontally.
  • 32mm discharge pipe work.
ACCESS THE 3D BIM LIBRARY

Frequently asked questions

How high and how far can I pump?2021-06-21T10:45:05+00:00

Closed valve head is 7m, max flow rate 1.7 L/S.

What is the maximum solids sizes?2021-06-21T10:44:35+00:00

10mm soft solids.

What pump or pumps fit into the tank?2021-06-21T10:44:04+00:00

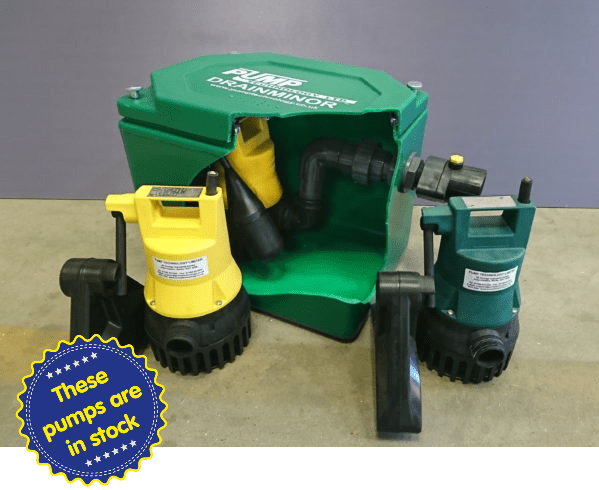

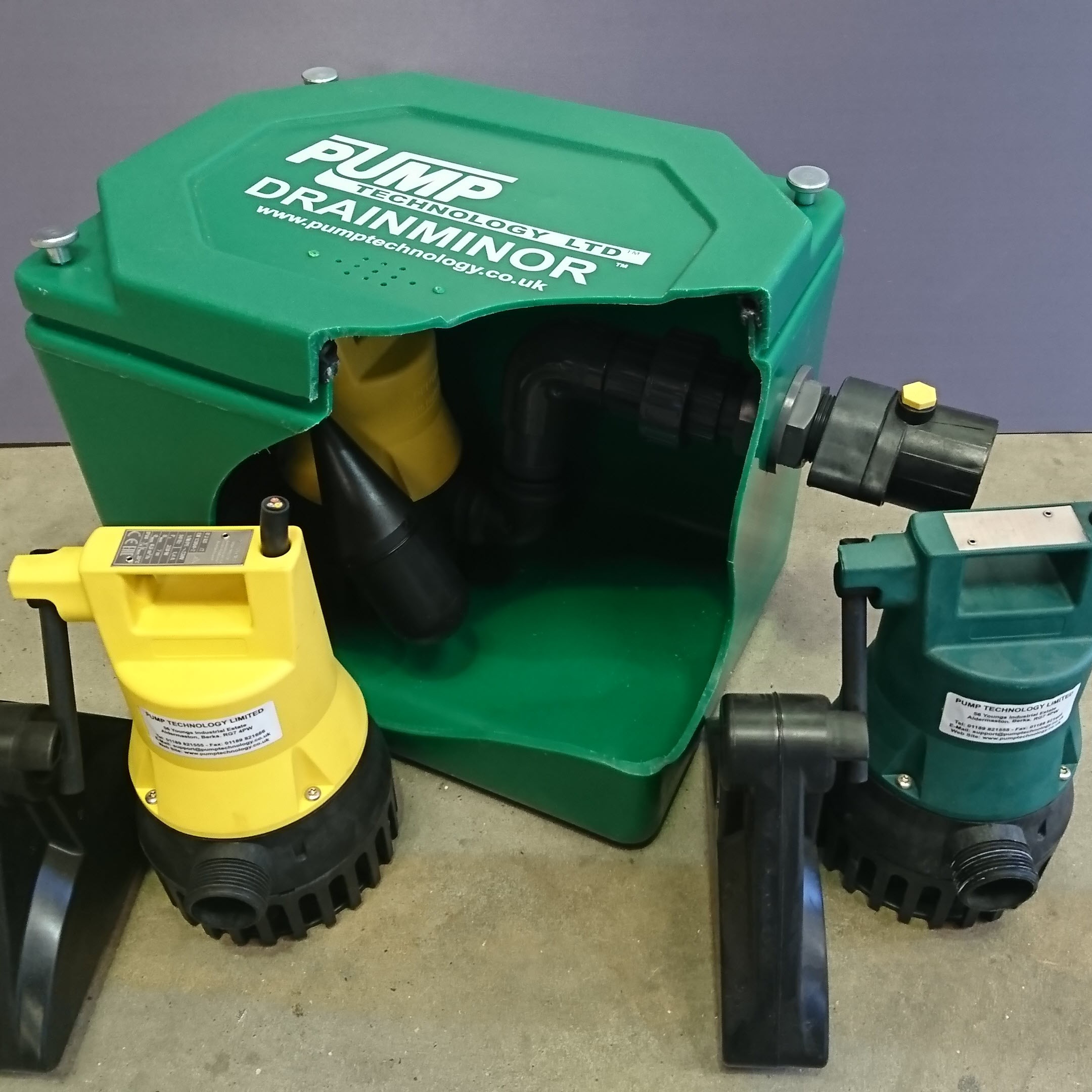

An automatic submersible Jung Pumpen U3K and U3K Special, with low level float. (U3K Speical is fitted with mechanical seal for applications such as- Light chemical, arduous food waste- coffee granules, milk skin…)

What is the minimum inlet height?2021-06-21T10:43:27+00:00

110mm. This ensures the suction to the pump is always flooded and prevents the possibility of air locking.

What material is the tank made from?2021-06-21T10:42:51+00:00

Recyclable Polyethylene. The tank is rigid, easier to drill tank connections into, and the sides of the tank are less likely to congeal with fats and grease.

How does the lid fit?2021-06-21T10:42:06+00:00

No tools are required to remove the lid. It’s held in place by 4 off stainless hand screws.

DATASHEET
Drainminor Datasheet
BROCHURE
Drainmajor Brochure
O&M MANUAL
Drainminor Installation Manual
CASE STUDY
Drainminor Case Study
